Stripe Fuse rail

Name: "Stripe Fuse rail"
Rating: 5 (807 reviews)

SKU: 7336205437

Model: BTR2

Product Details

Product Specification

Type	Stripe Fuse Switch Disconnector	Model	BTR2
Params	Rated：250A 400A 630A Ue：415,500,690V Ith：250A 400A 630A Frequeney: 50/60Hz Ui: 1000V Uimp: 10kV Degree Of Protection IP30	Material	COPPER+DMC+ABS+PC
Applicable Industry	In petroleum, chemical, metallurgical, power, construction and other industries of the low voltage distribution system.

Feature

Convenient busbar installation (hook-type) Comprehensive safety protection (enclosed structure, SMC material) Compact and flexible modular design supports 100mm and 158mm busbar systems Excellent electrical performance: 63A to 630A insulation voltage 800V, 50-100kA limiting short-circuit current

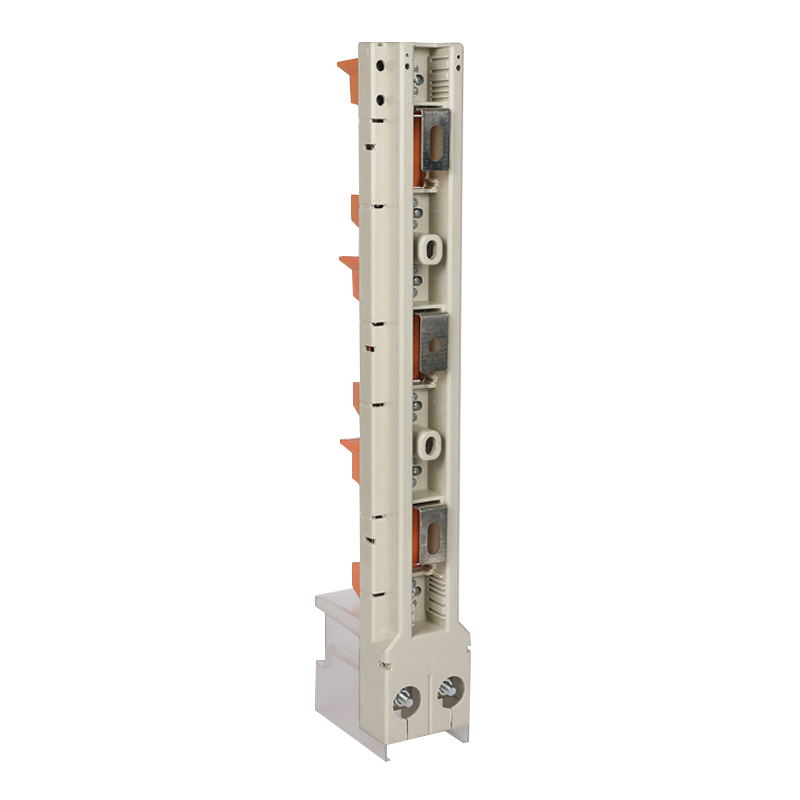

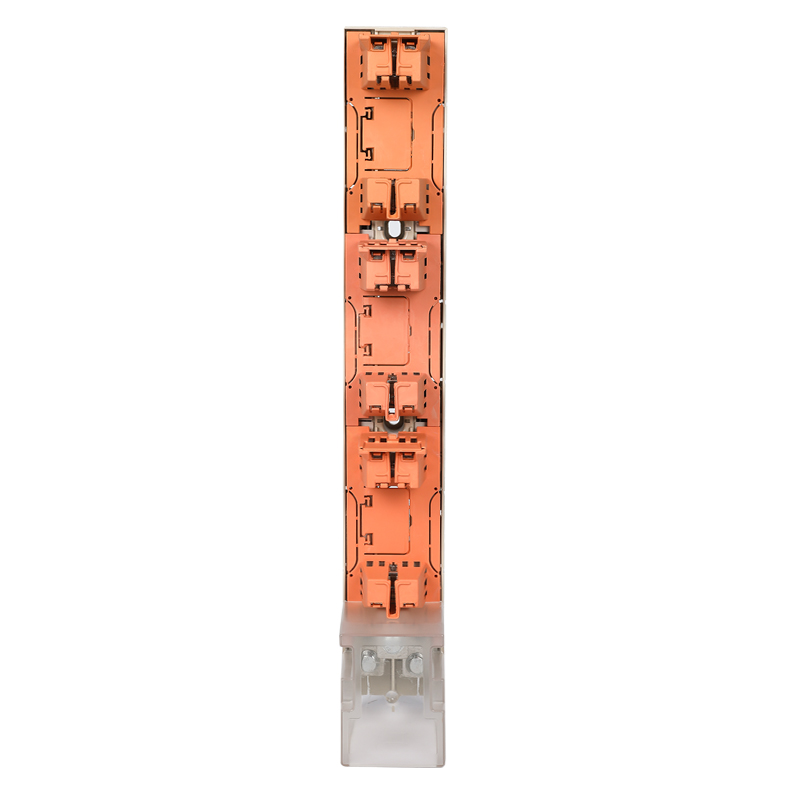

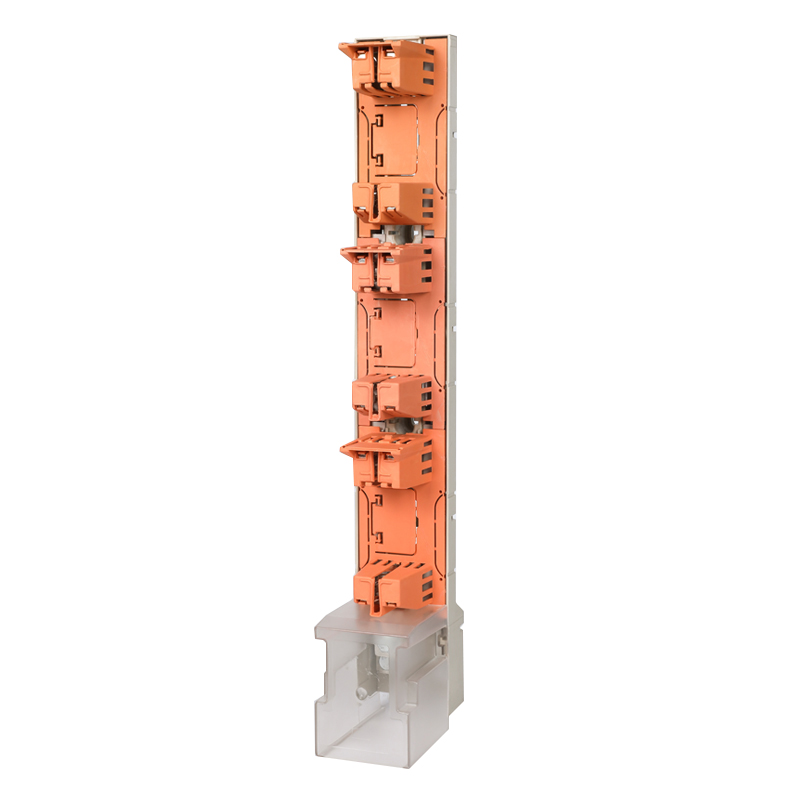

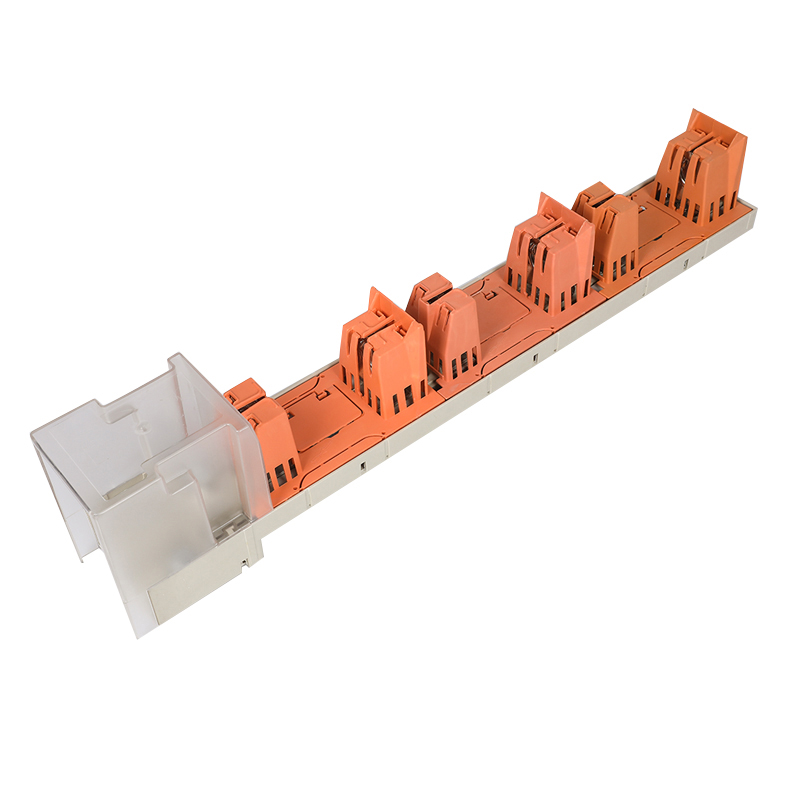

FUSE RAIL-BTR2

BTR2 Catalogue
