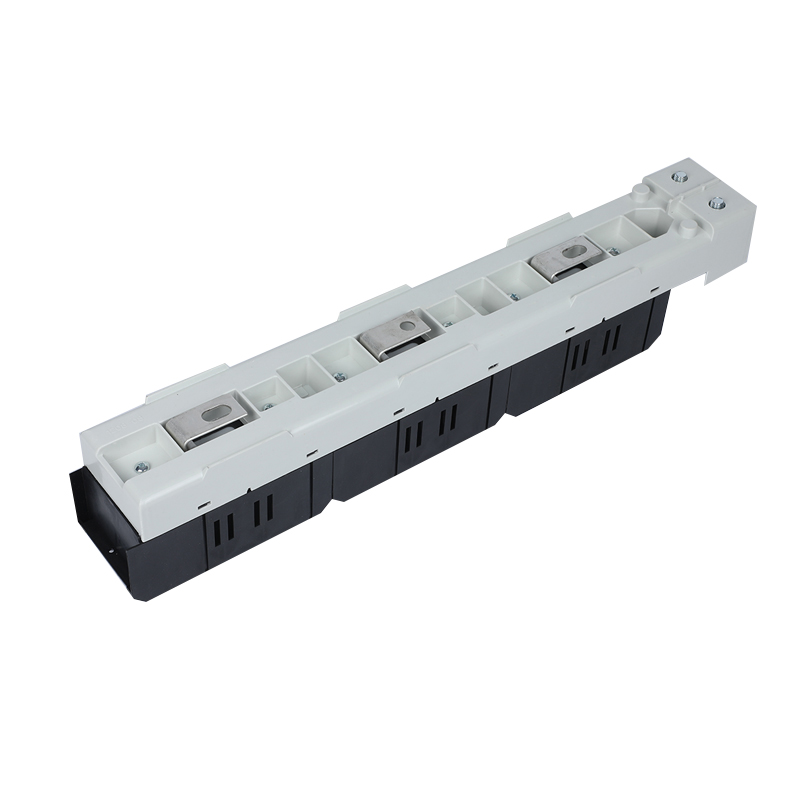

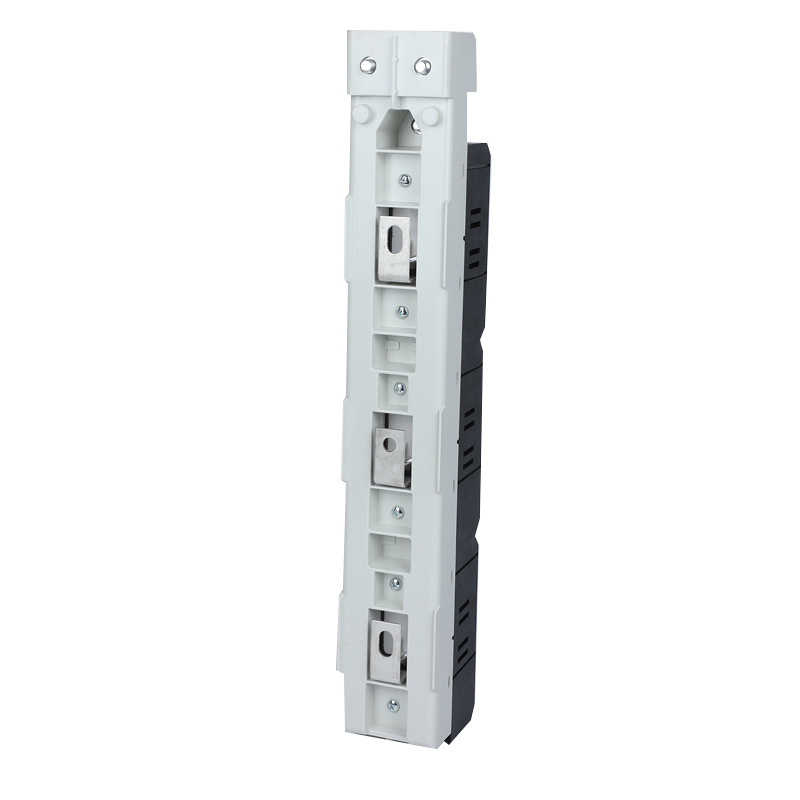

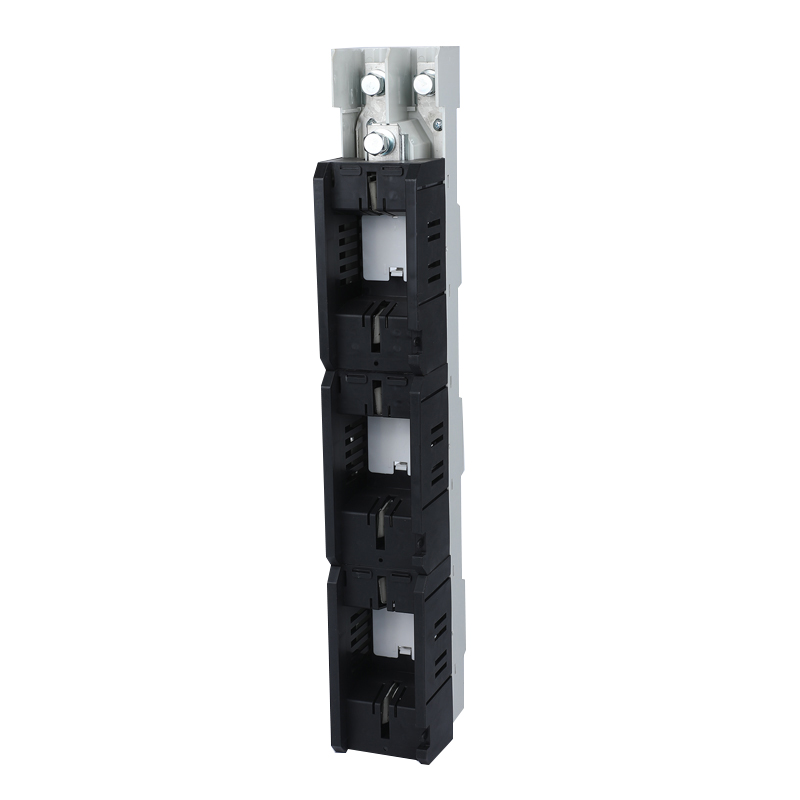

Stripe Fuse fuse rail

Name: "Stripe Fuse fuse rail"
Rating: 5 (439 reviews)

SKU: 9412466382

Model: BTR5

Product Details

Product Specification

Type	Stripe Fuse Switch Disconnector	Model	BTR5
Params	Type of Fuse Switch:BTR5-250 BTR5-400 BTR5-630 Ue：415,500,690V Ith：250A 400A 630A Frequeney: 50/60Hz Ui: 1000V Uimp: 10kV Degree Of Protection IP30	Material	COPPER+DMC+ABS
Applicable Industry	In petroleum, chemical, metallurgical, power, construction and other industries of the low voltage distribution system.

Feature

Convenient busbar installation (hook-type) Comprehensive safety protection (enclosed structure, SMC material) Compact and flexible modular design supports 100mm and 158mm busbar systems Excellent electrical performance: 63A to 630A insulation voltage 800V, 50-100kA limiting short-circuit current

BTR5

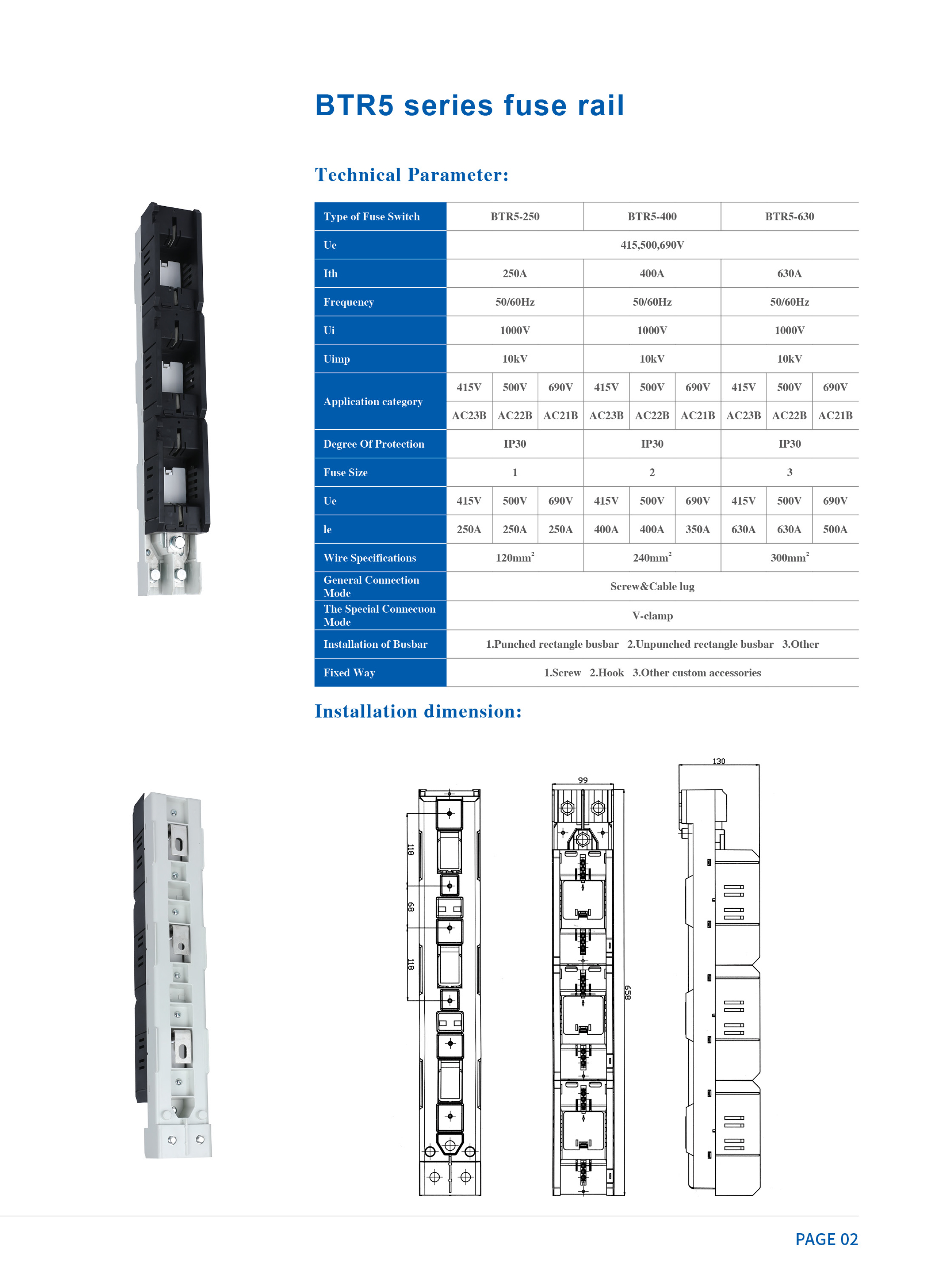

BTR5-Catalogue
