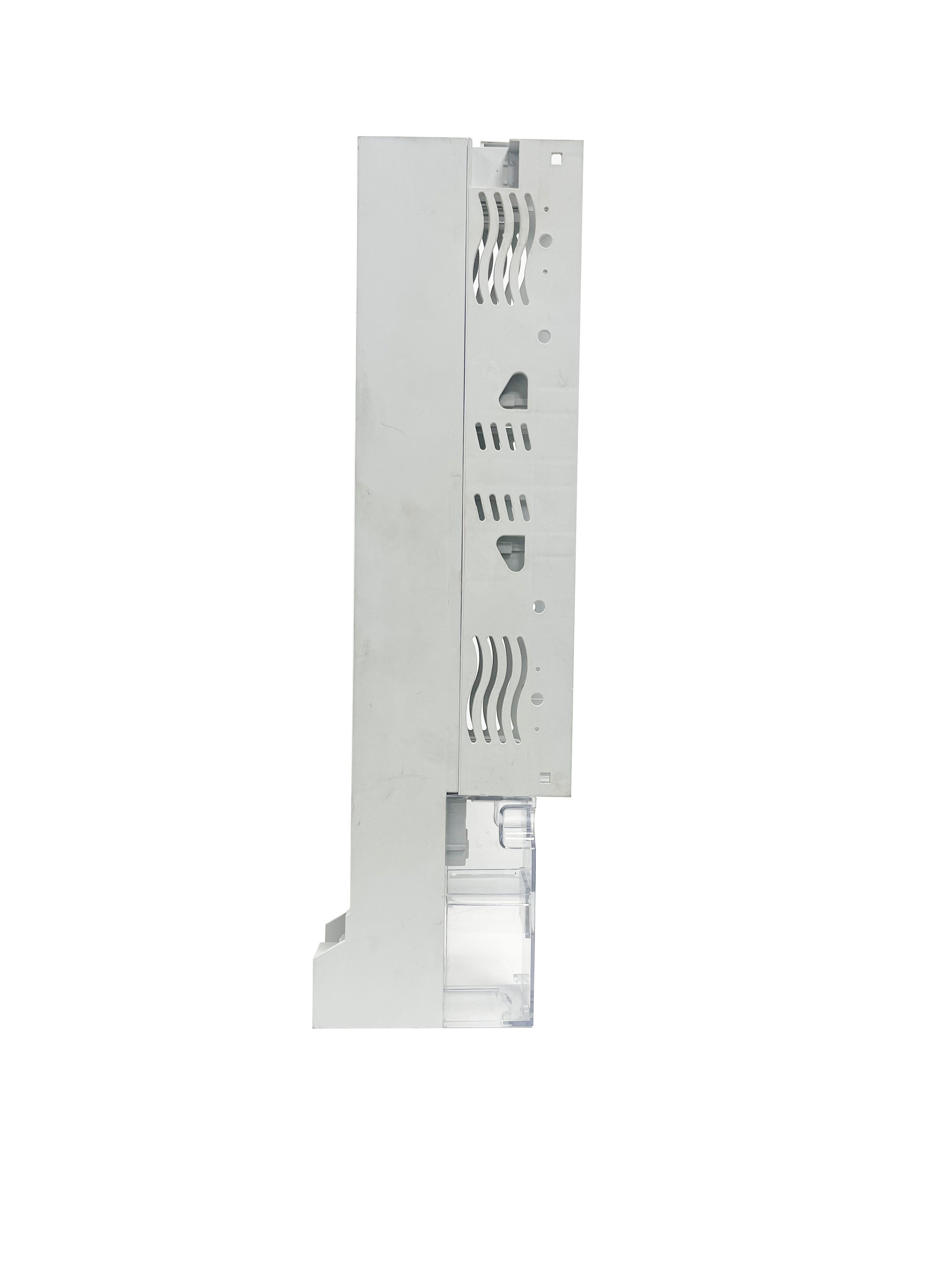

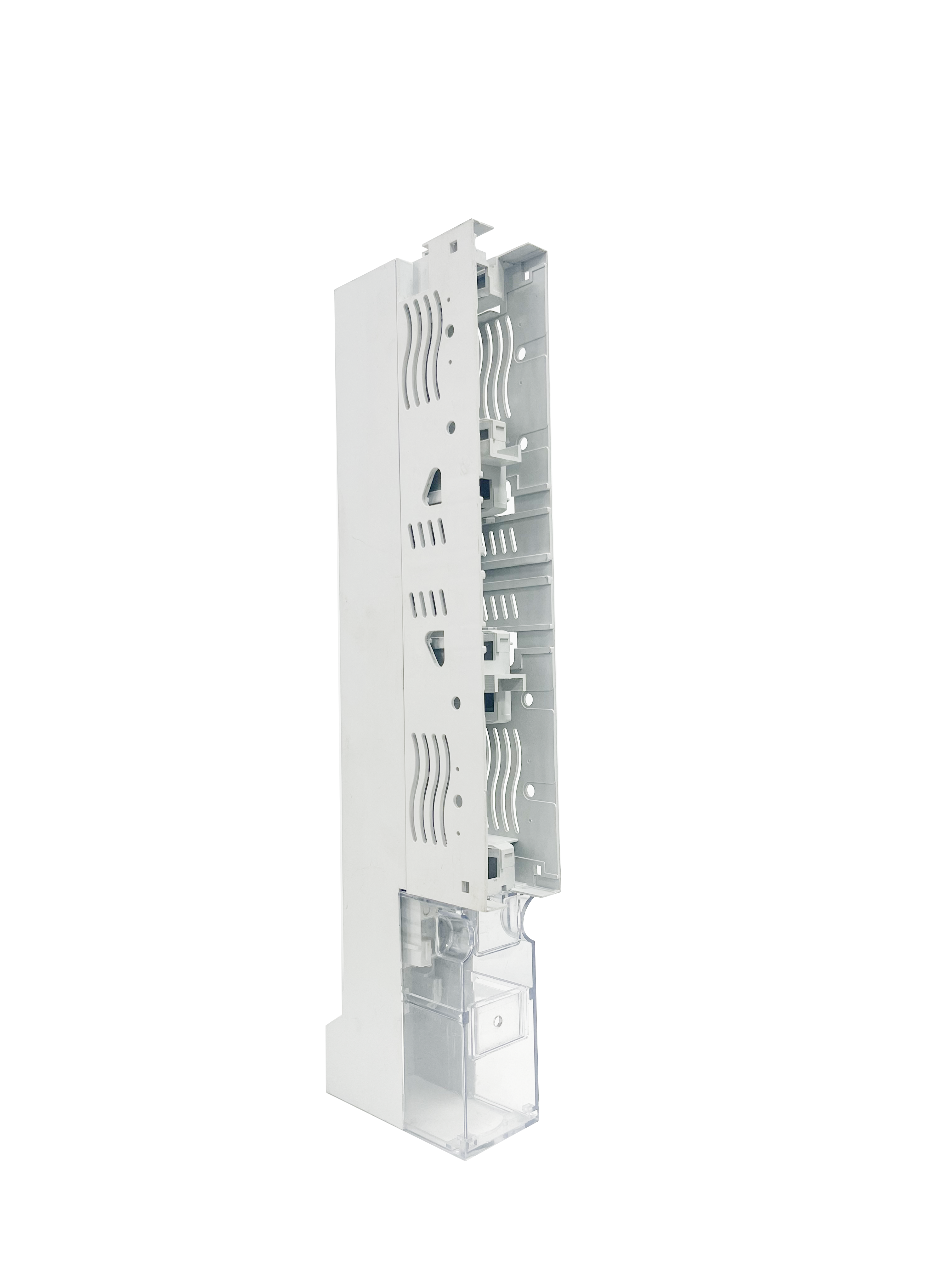

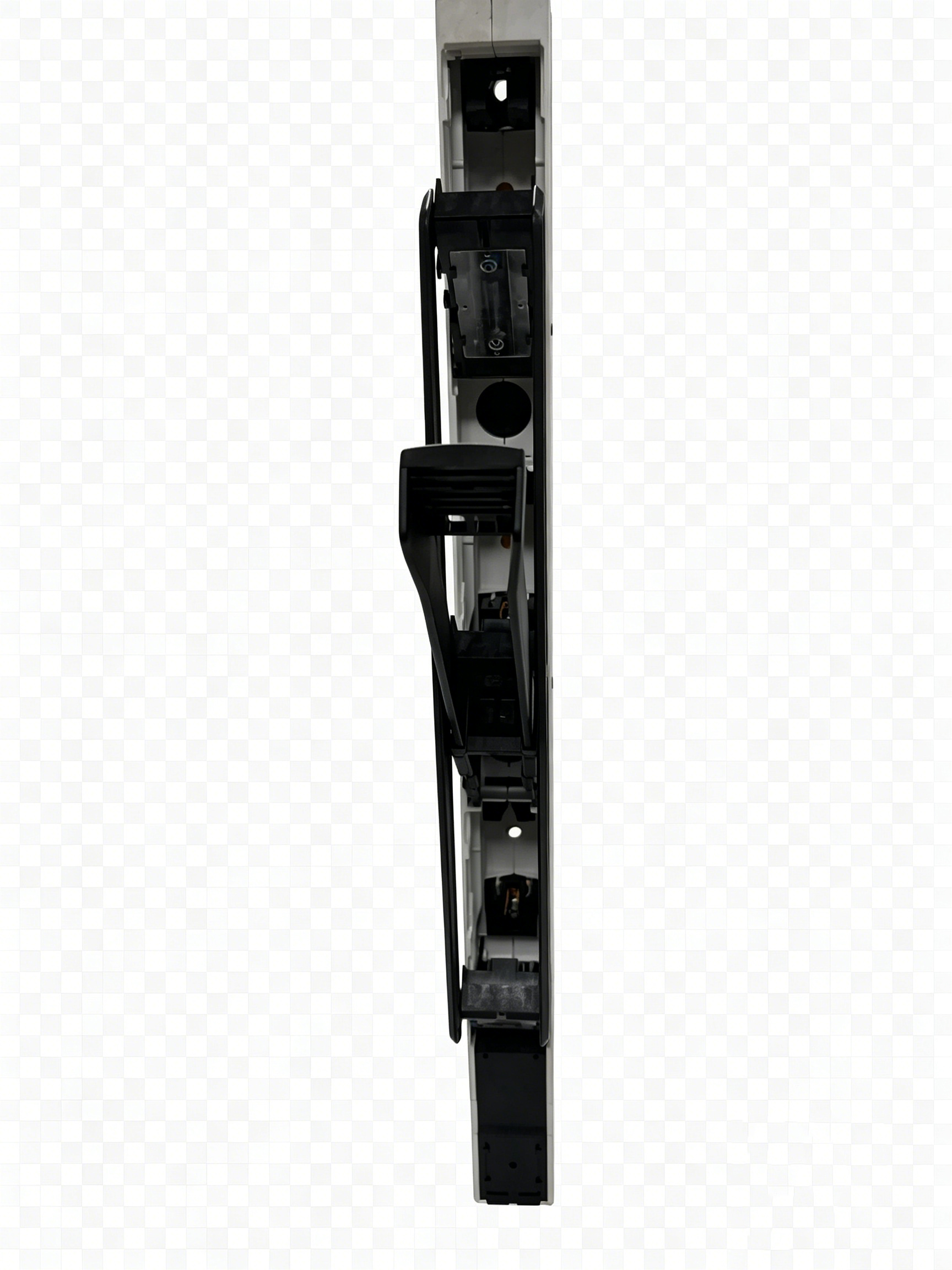

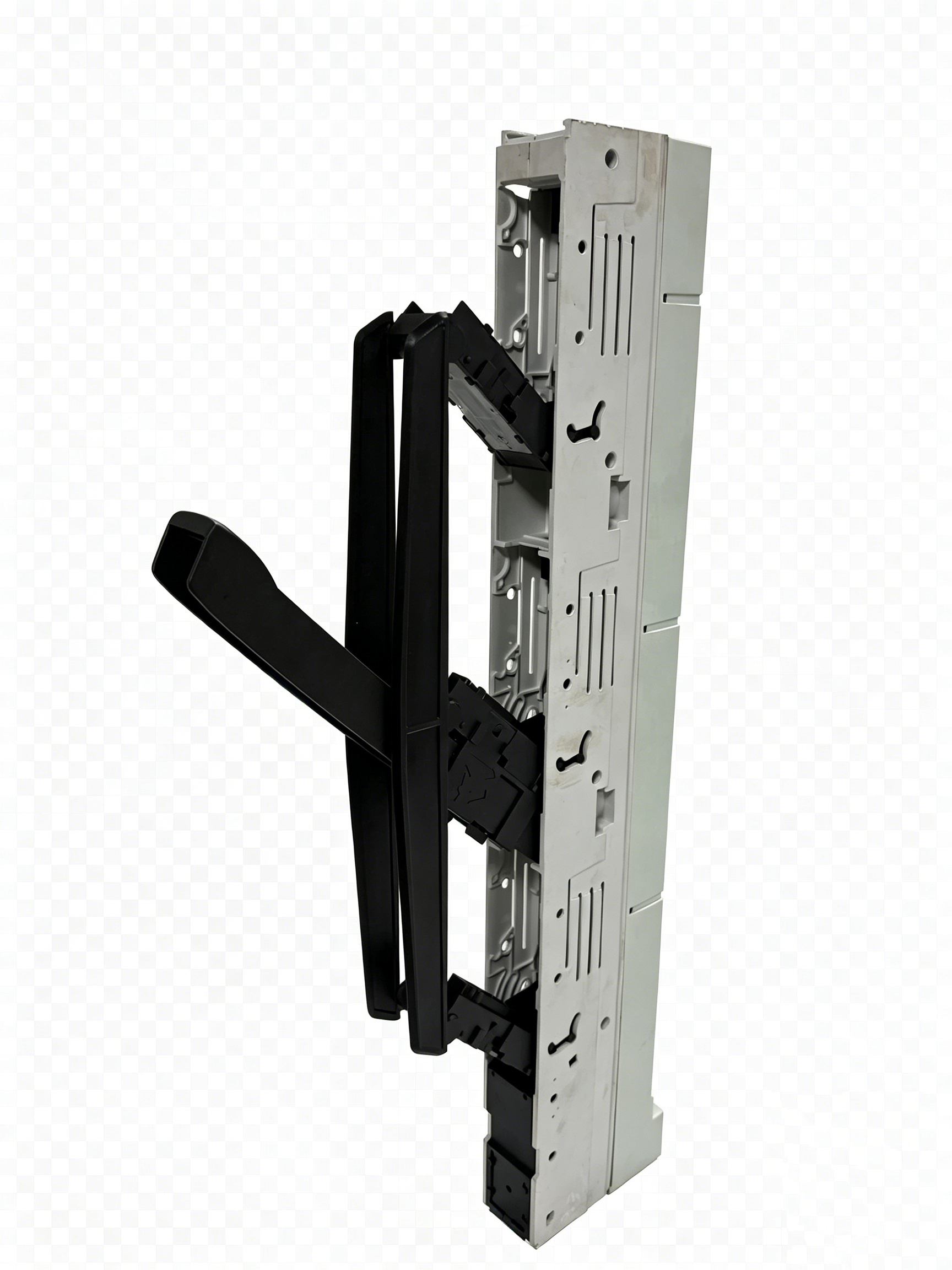

Stripe Fuse Switch Disconnector

Name: "Stripe Fuse Switch Disconnector"
Rating: 5 (712 reviews)

SKU: 6050954917

Model: BTR6

Product Details

Product Specification

Type	Stripe Fuse Switch Disconnector	Model	BTR6
Params	Description Unit :100mm 185mm Rated operation current Ie (A) 160 Rated operation voltage Ue (V) AC 690 Busbar distance 100mm 185mm Standard IEC / EN 60269	Material	COPPER+DMC+ABS+PC
Applicable Industry	In petroleum, chemical, metallurgical, power, construction and other industries of the low voltage distribution system.

Feature

Integrating high-current safe disconnection with compact installation and intelligent monitoring. Intelligent integration and monitoring facilitate remote management and fault early warning. Powerful electrical performance: 1.3 IB, 50-100KA instantaneous breaking capacity, 12KV impulse voltage. Flexible installation and operation: Supports simultaneous three-phase disconnection or independent single-phase disconnection. Visualized safety design. Compact and modular design.

BTR6

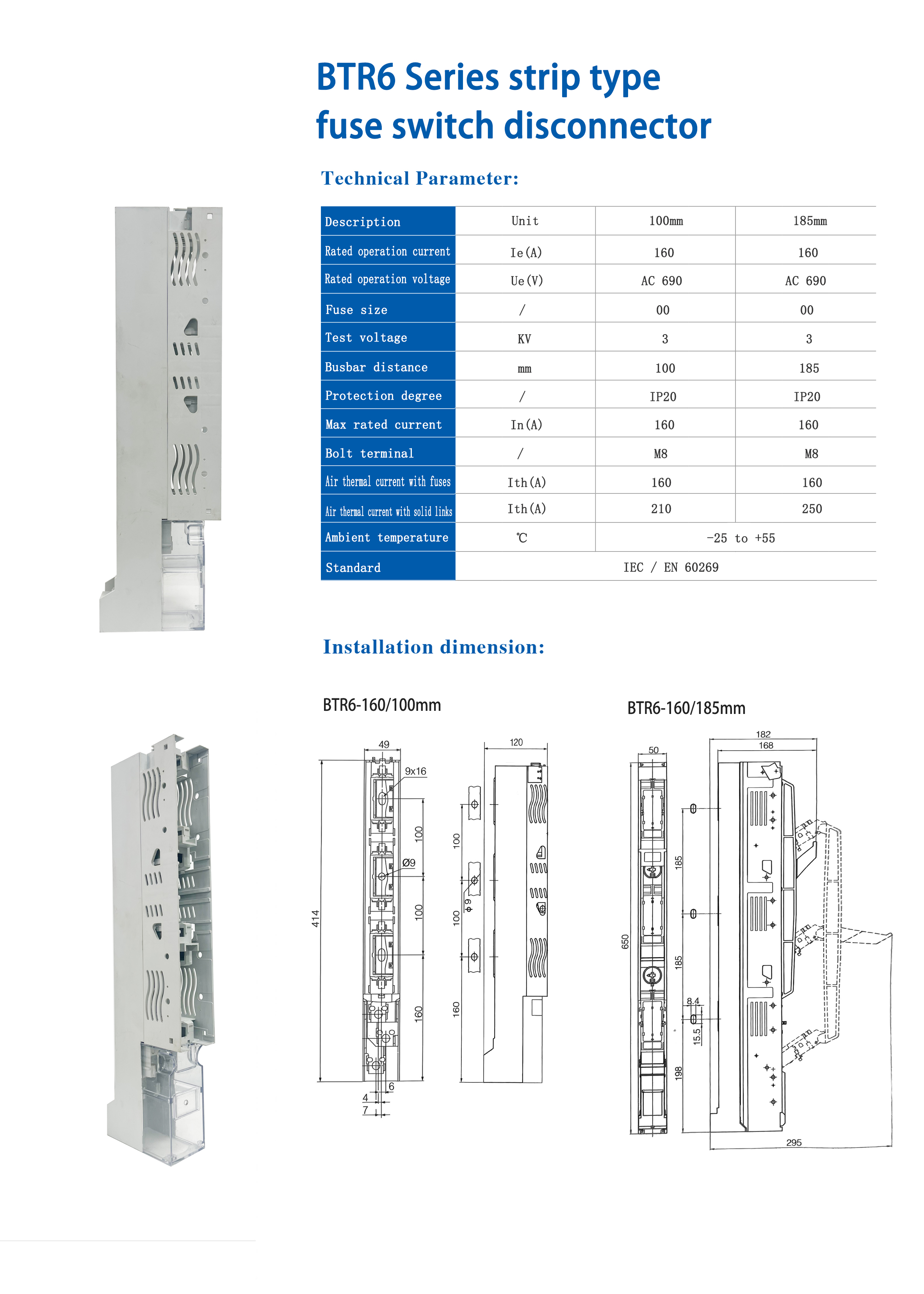

BTR6 Catalogue

BTR6
