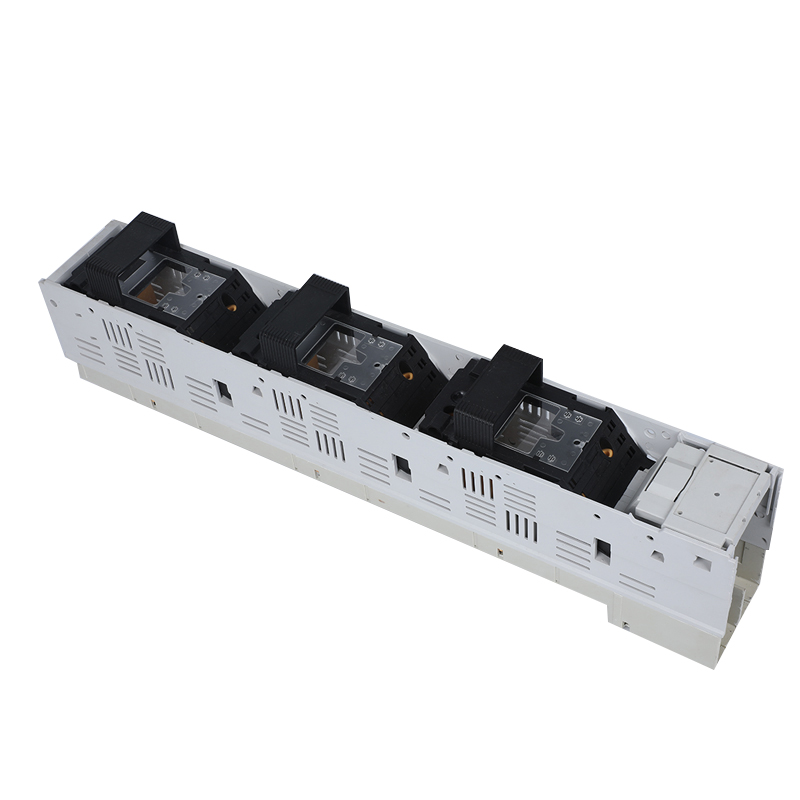

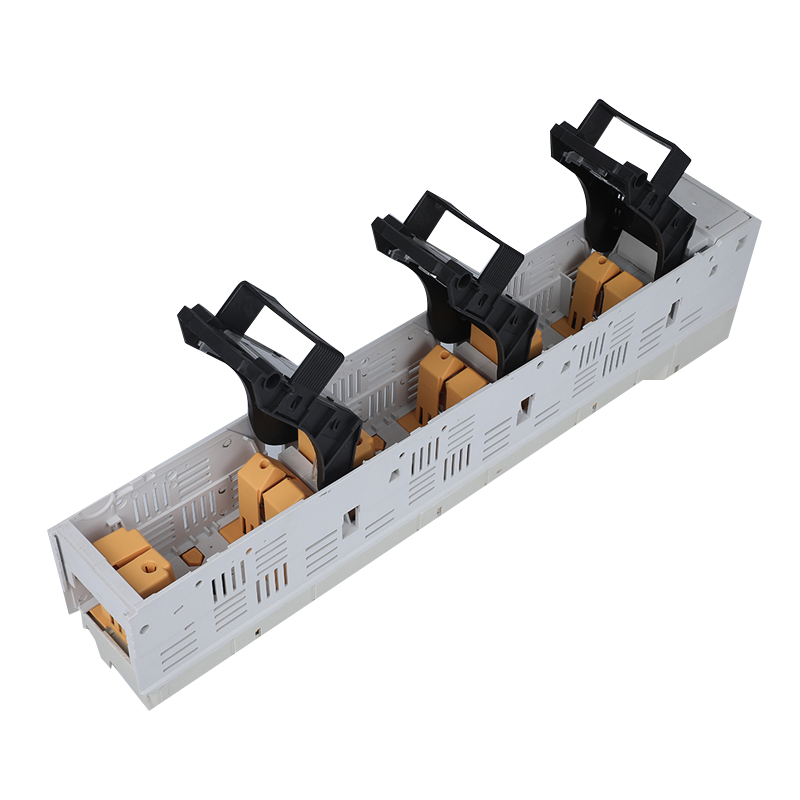

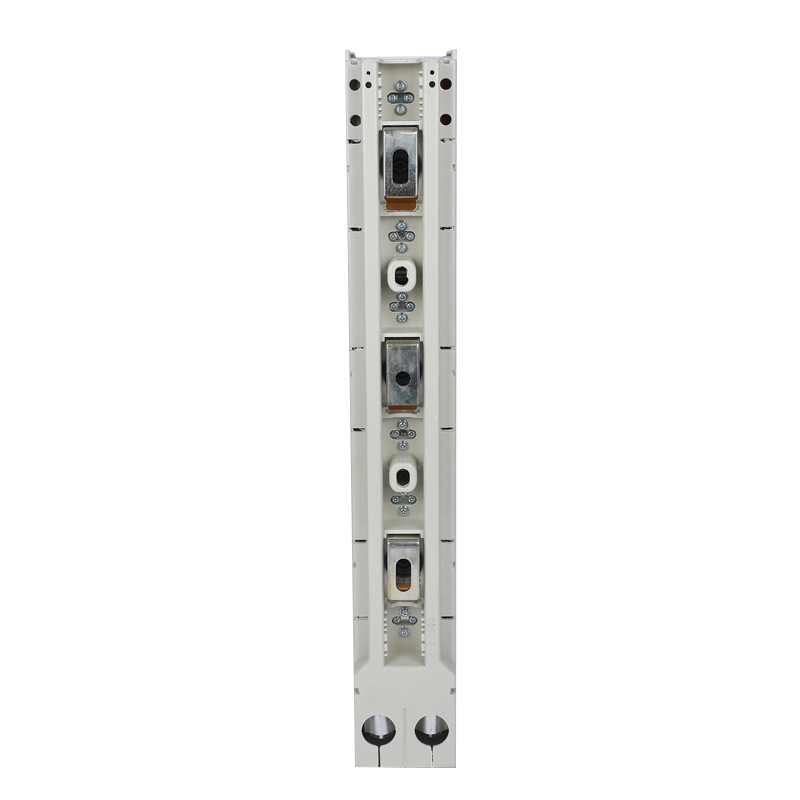

Stripe Fuse Switch Disconnector

Name: "Stripe Fuse Switch Disconnector"
Rating: 5 (759 reviews)

SKU: 7605956096

Model: BTR3

Product Details

Product Specification

Type	Stripe Fuse Switch Disconnector	Model	BTR3
Params	Type of Fuse Switch:BTR3-250 BTR3-400 BTR3-630 Ue：415,500,690V Ith：250A 400A 630A Frequeney: 50/60Hz Ui: 1000V Uimp: 10kV Degree Of Protection IP30	Material	COPPER+DMC
Applicable Industry	In petroleum, chemical, metallurgical, power, construction and other industries of the low voltage distribution system.

Feature

Integrating high-current safe disconnection with compact installation and intelligent monitoring. Intelligent integration and monitoring facilitate remote management and fault early warning. Powerful electrical performance: 1.3 IB, 50-100KA instantaneous breaking capacity, 12KV impulse voltage. Flexible installation and operation: Supports simultaneous three-phase disconnection or independent single-phase disconnection. Visualized safety design. Compact and modular design.

BTR3

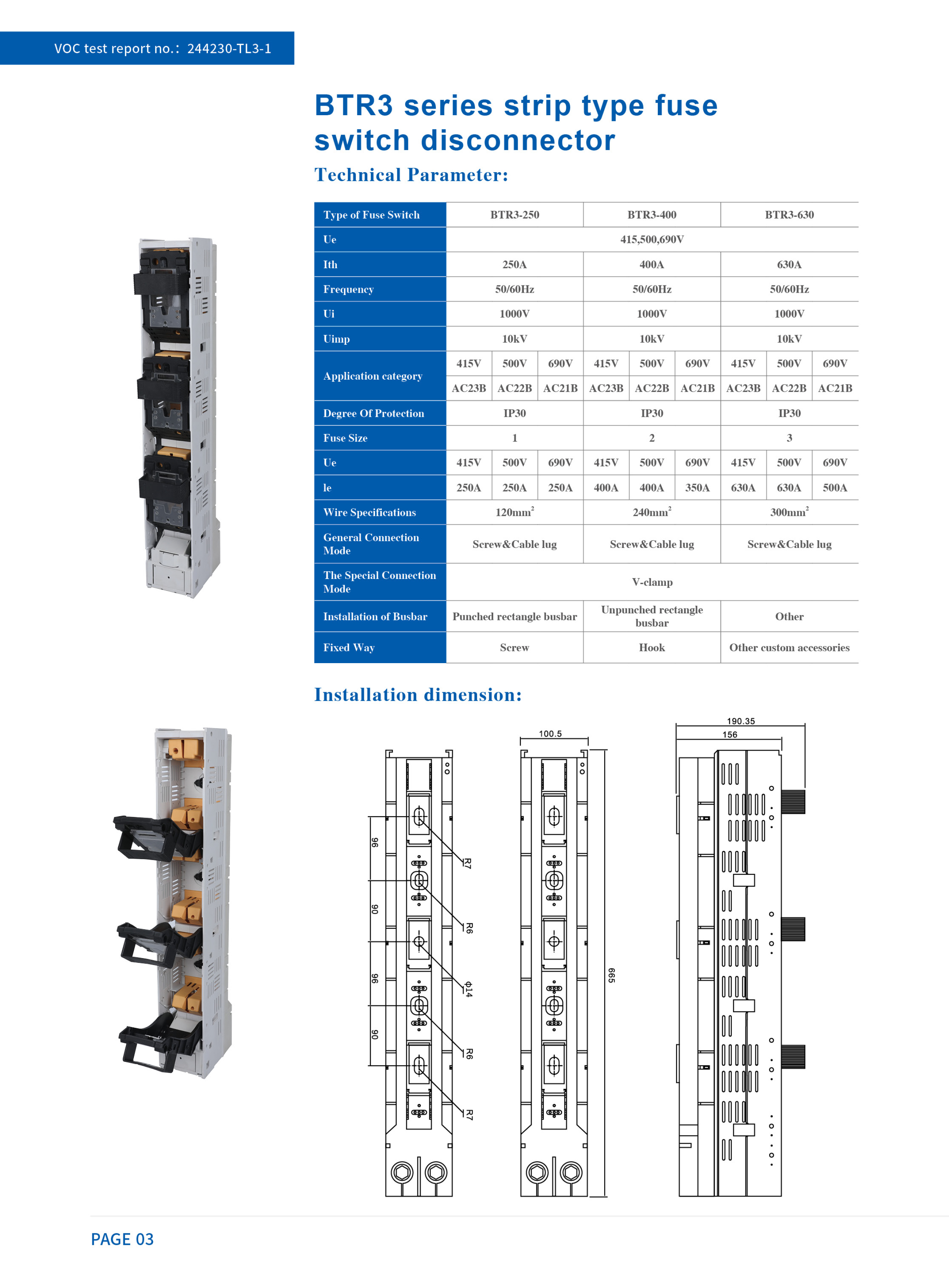

BTR3-Catalogue
