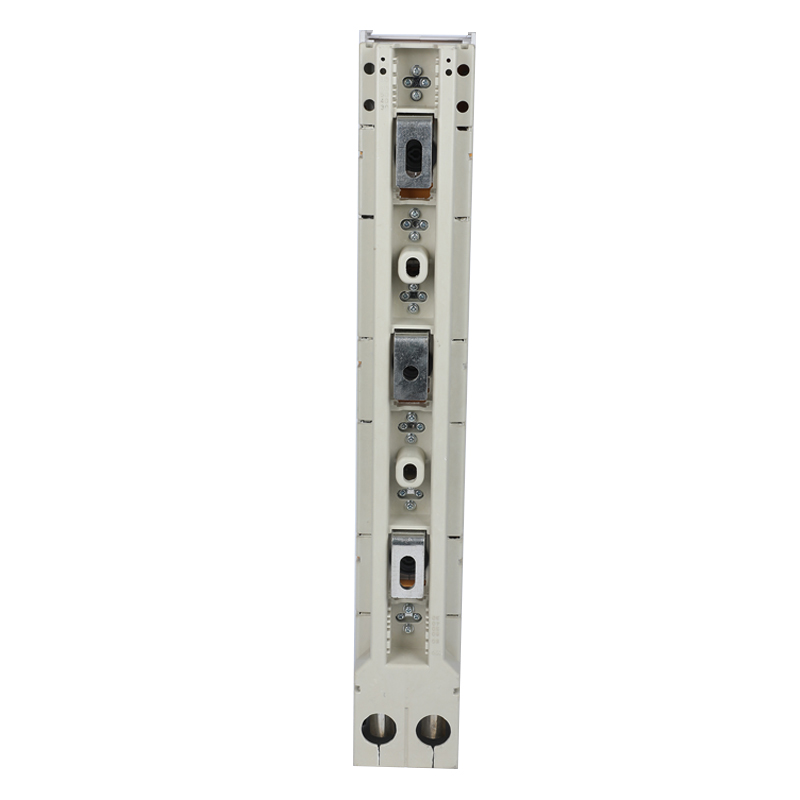

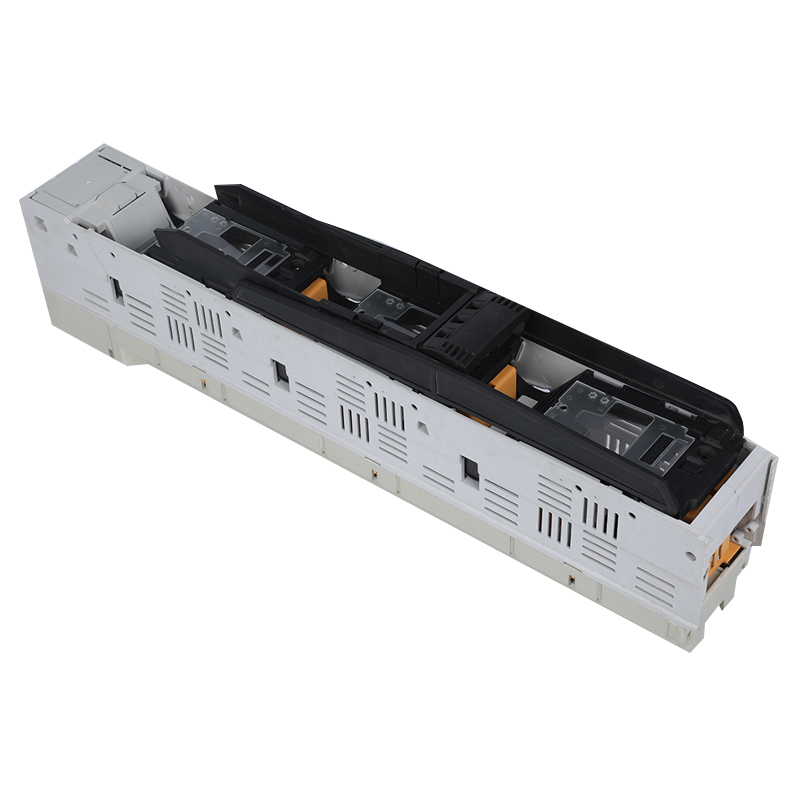

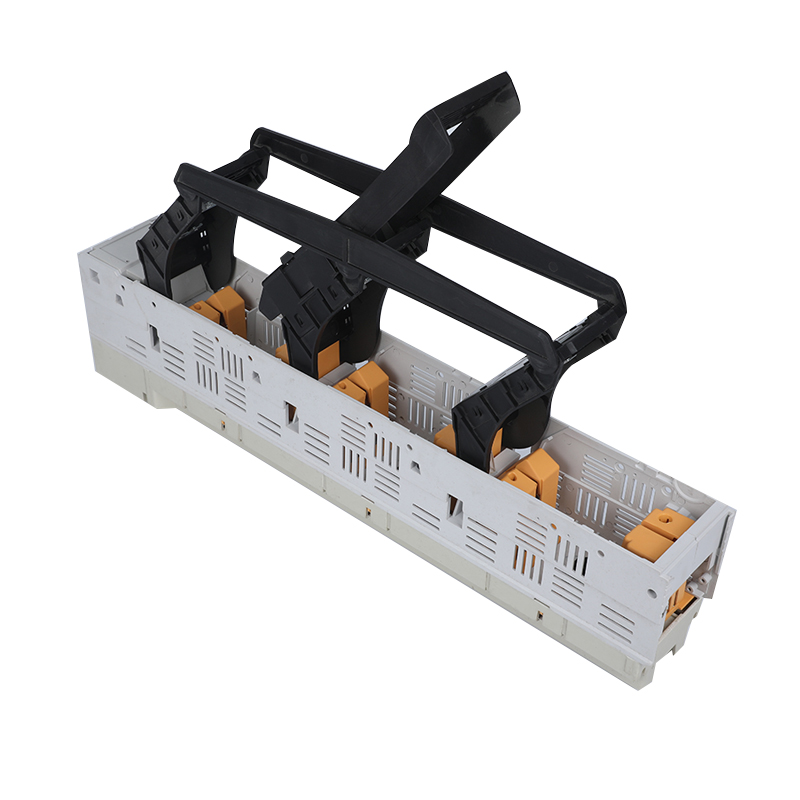

Stripe Fuse Switch Disconnector

Name: "Stripe Fuse Switch Disconnector"
Rating: 5 (782 reviews)

SKU: 5912739635

Model: BTR4

Product Details

Product Specification

Type	Stripe Fuse Switch Disconnector	Model	BTR4
Params	Type of Fuse Switch:BTR4-250 BTR4-400 BTR4-630 Ue：415,500,690V Ith：250A 400A 630A Frequeney: 50/60Hz Ui: 1000V Uimp: 10kV Degree Of Protection IP30	Material	COPPER+DMC+ABS+PC
Applicable Industry	In petroleum, chemical, metallurgical, power, construction and other industries of the low voltage distribution system.

Feature

Integrating high-current safe disconnection with compact installation and intelligent monitoring. Intelligent integration and monitoring facilitate remote management and fault early warning. Powerful electrical performance: 1.3 IB, 50-100KA instantaneous breaking capacity, 12KV impulse voltage. Flexible installation and operation: Supports simultaneous three-phase disconnection or independent single-phase disconnection. Visualized safety design. Compact and modular design.

BTR4

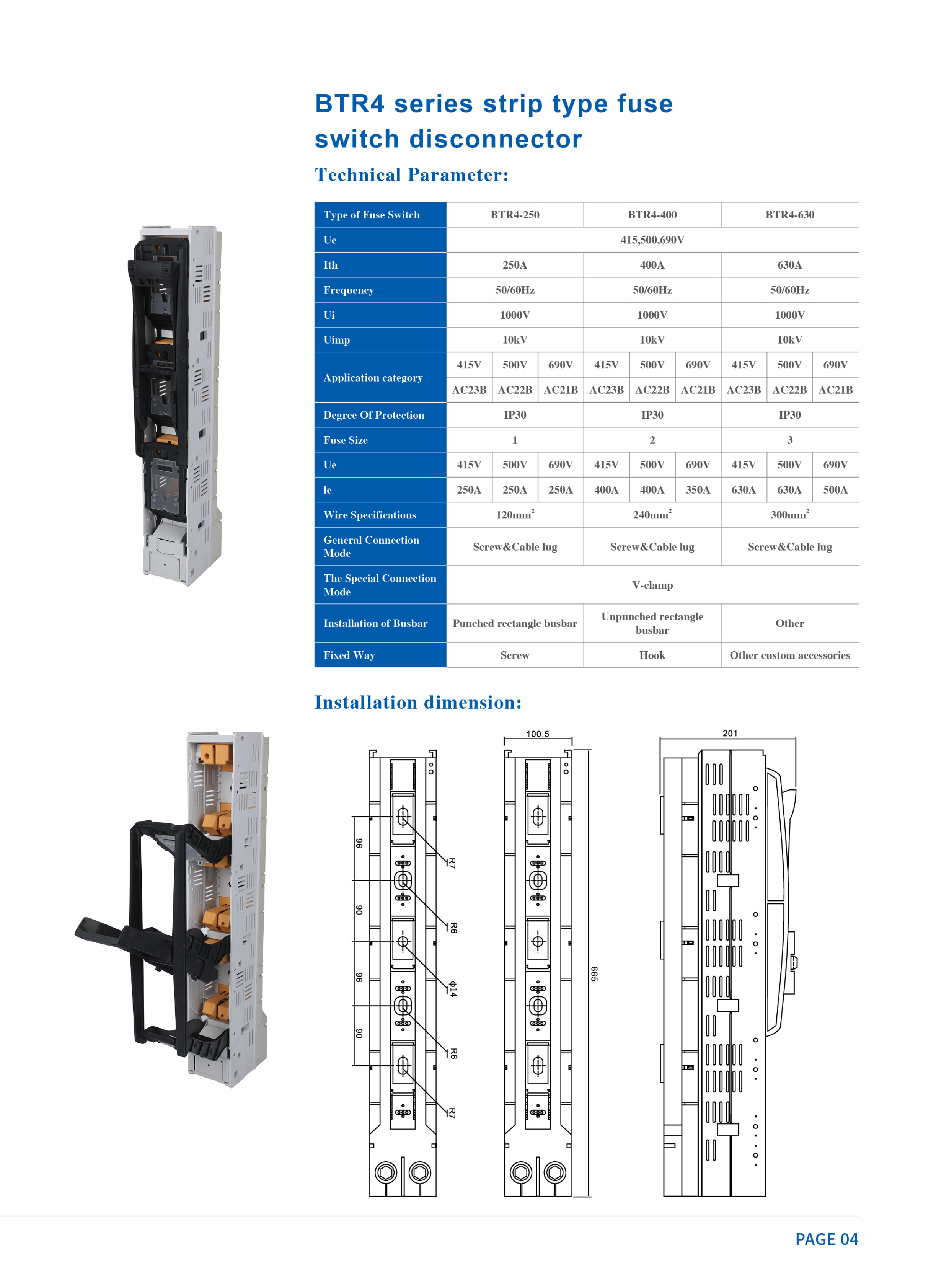

BTR4-Catalogue
