MCCB 2P Pan Assembly busbar

Name: "MCCB 2P Pan Assembly busbar"
Rating: 5 (152 reviews)

SKU: 596462328X

Model: BP5

Product Details

Product Specification

Type	Mccb Pan Assembly	Model	BP5
Params	Rated: Incoming: 125A (T 4mm), 250A (T 6mm) 400A (T 10mm)Outgoings: 63A (T 2mm) 125A (T 3mm) DP MCCB pan assembly could be used for branch DP MCCB which pole distance 25mm,width 50mm 2W-40W Outgoing terminalwidth (mm):15mm Incoming terminalwidth (mm):25mm	Material	Copper+PC PARTS
Applicable Industry	Industrial application and commercial building electric management

Feature

Simultaneous live and neutral disconnection, extremely simple wiring Easy-to-install and fast installation Precise tooth pitch, reliable contact Maximum neatness

BP5

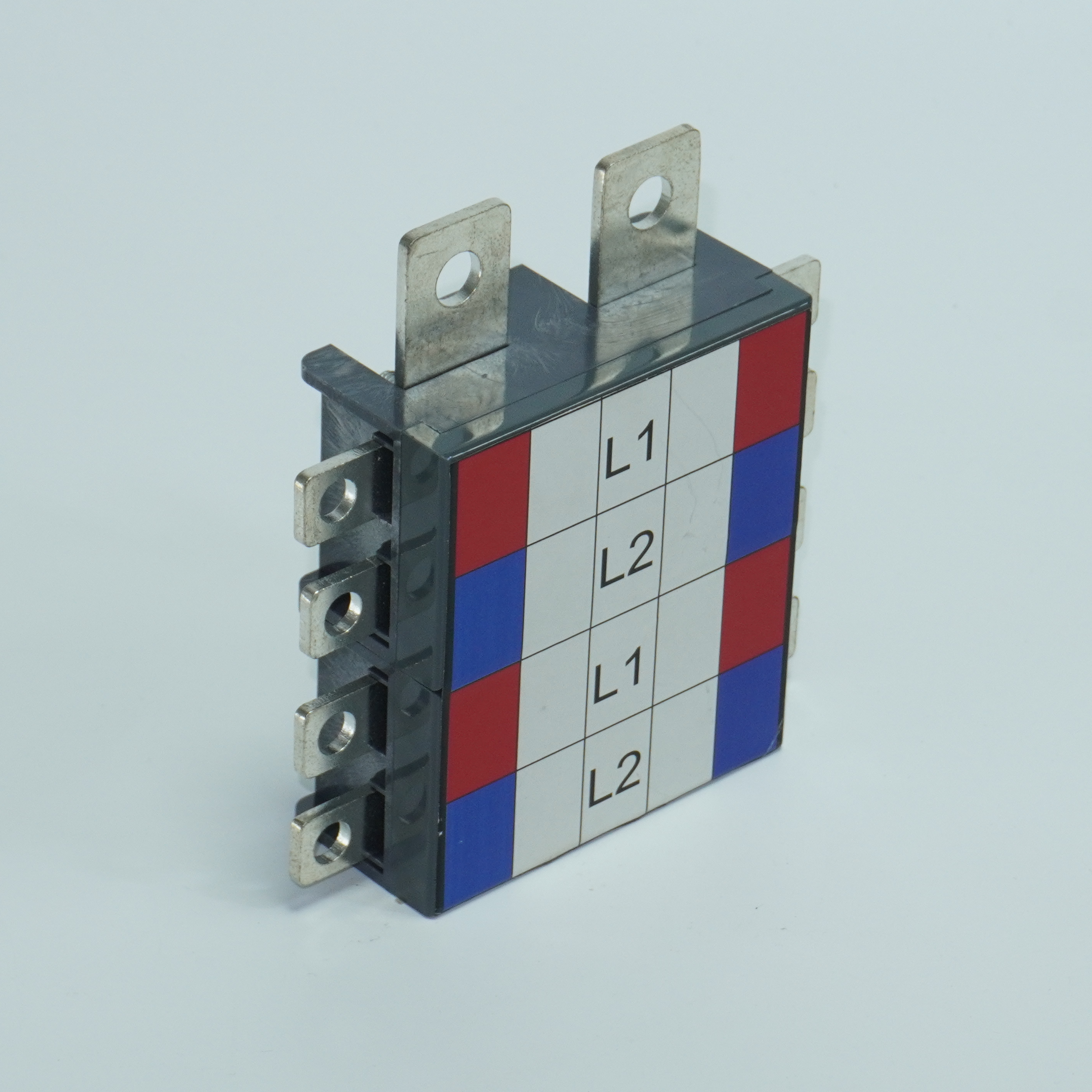

BP5

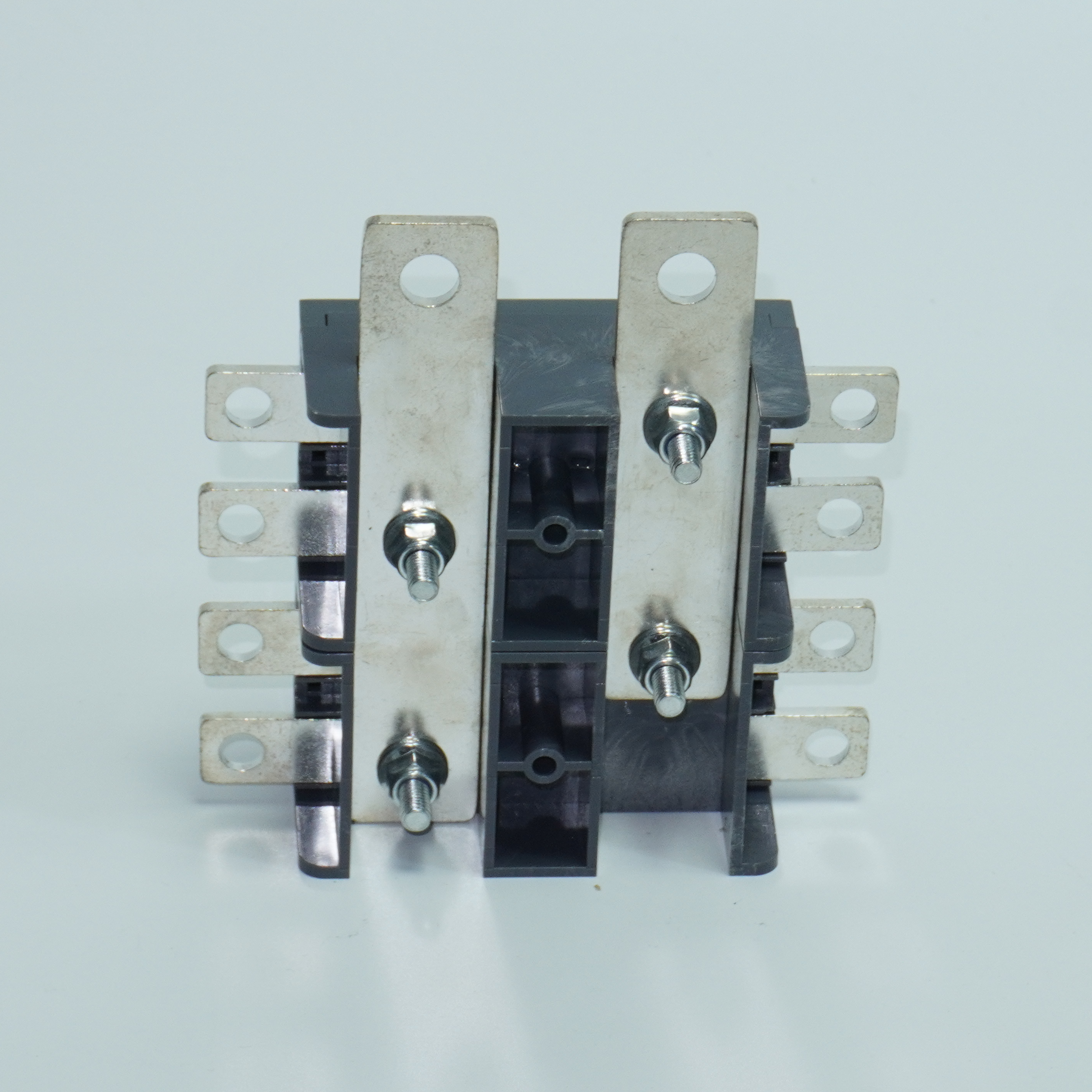

BP5

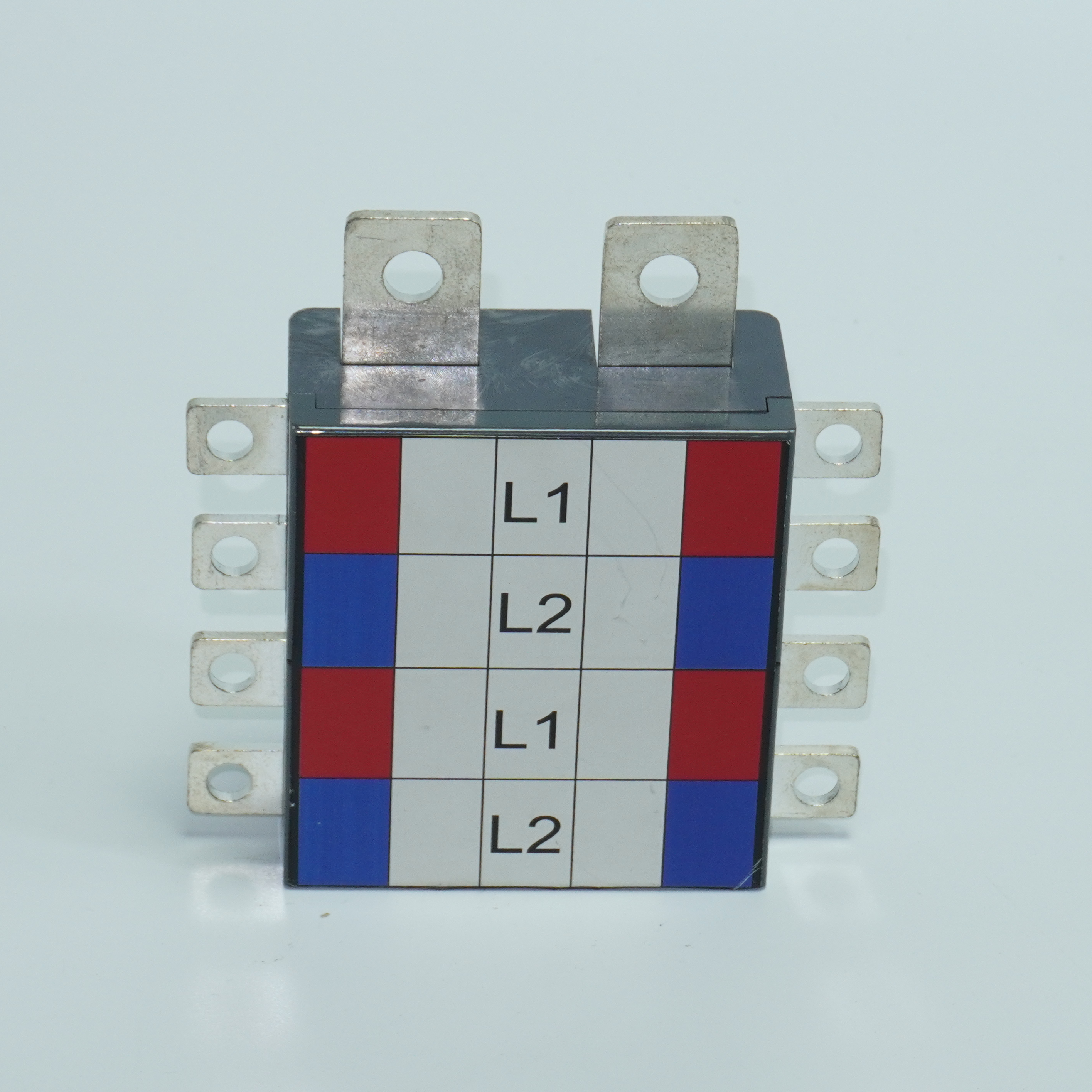

BP5

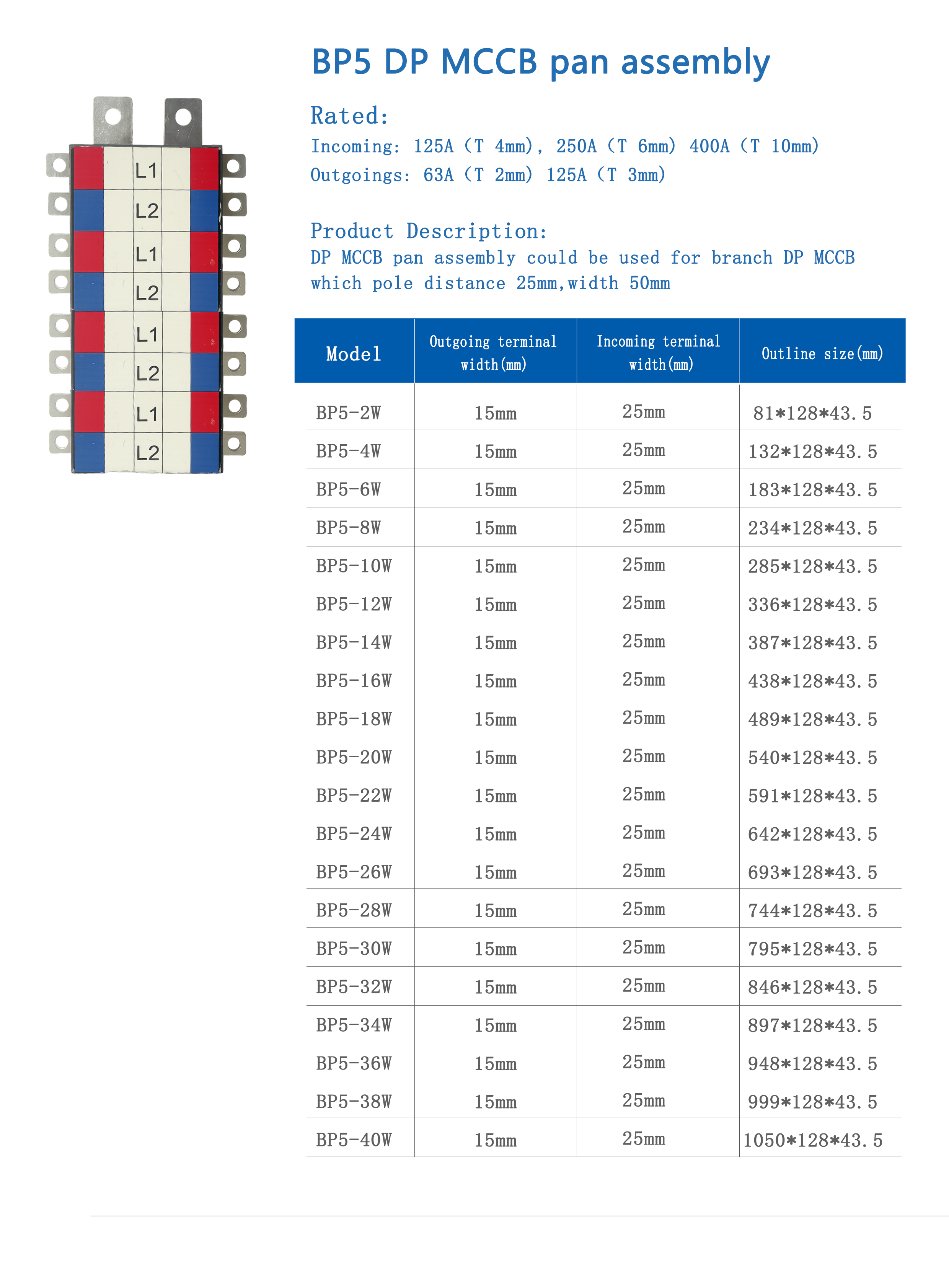

BP5_catalog
