MCB 2P Pan Assembly

Name: "MCB 2P Pan Assembly"
Rating: 5 (161 reviews)

SKU: 976044965X

Model: BP2

Product Details

Product Specification

Type	mcb pan assembly	Model	BP2
Params	Rated current:125A/250A Rated voltage:220/240/120V Main switch /Incoming : MCCB or MCB Branch switch/outgoing: Double poles MCB,or RCBO Material of case:PC Outgoing terminal sizeThickness x width(mm):2x5 Incoming terminal sizeThickness x width(mm):3x15	Material	Copper+PC PARTS
Applicable Industry	Industrial application and commercial building electric management

Feature

Makes distribution box installation more efficient, safe, and neat. Saves time and effort during installation. Enhances safety performance. Balances quality and cost.

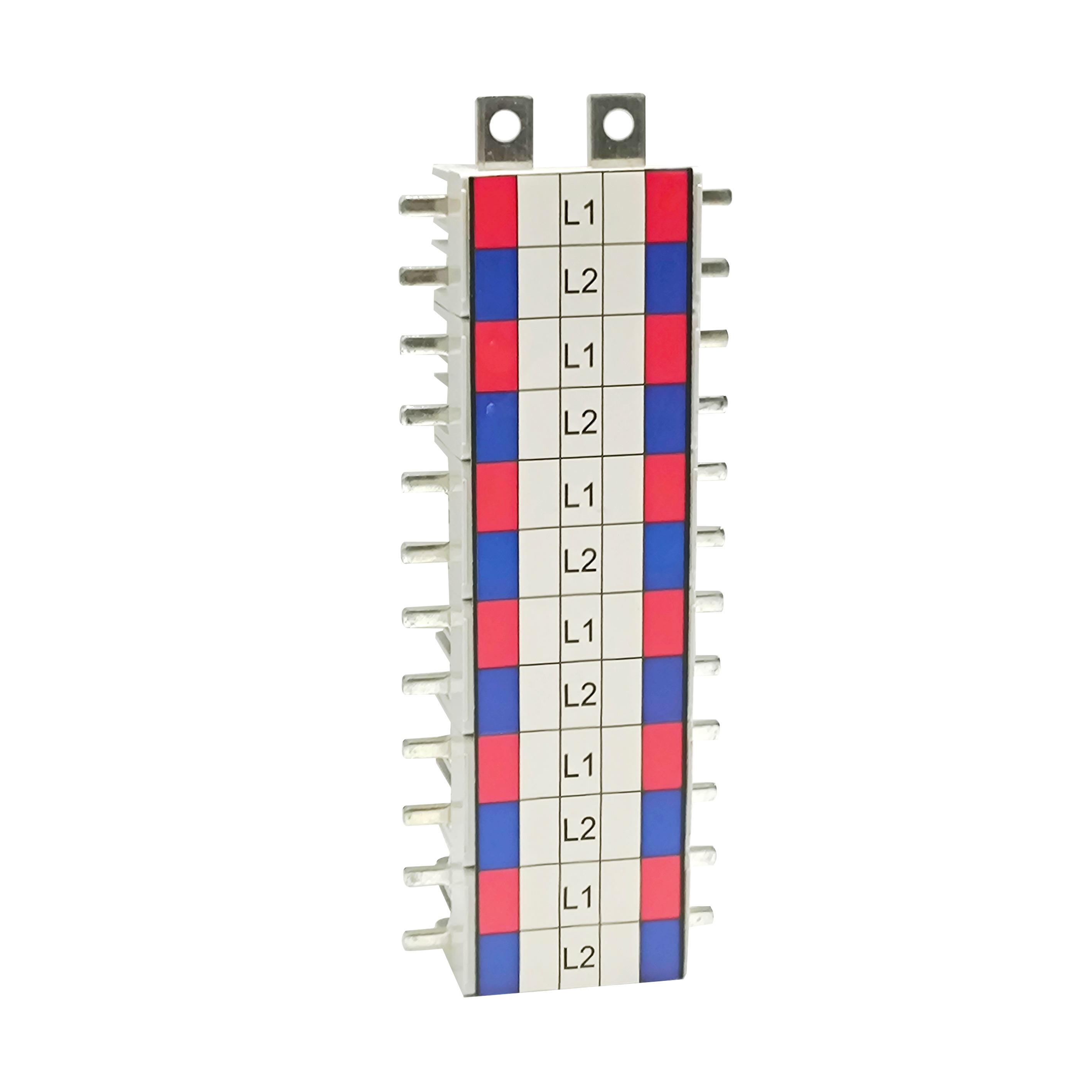

BP2

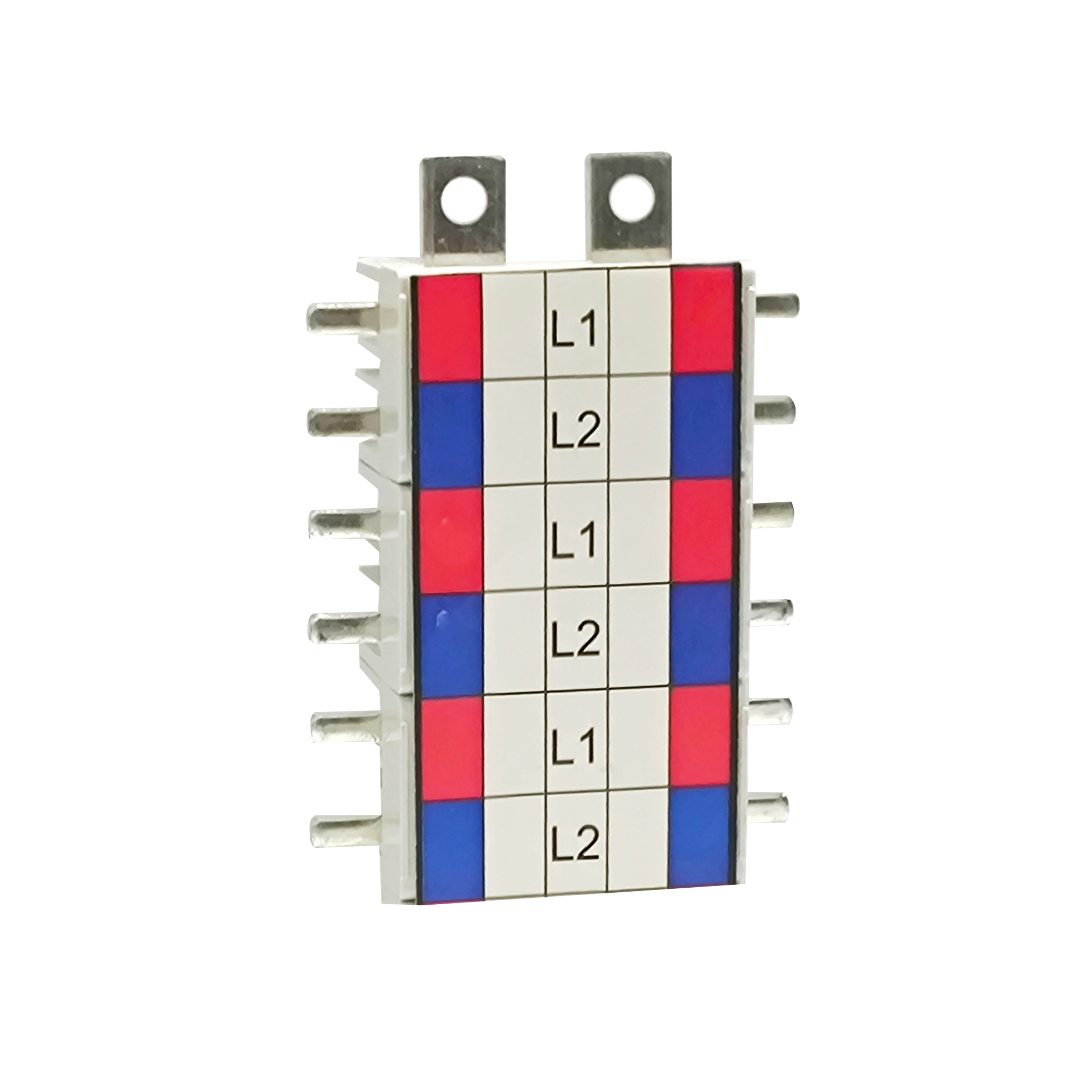

BP2

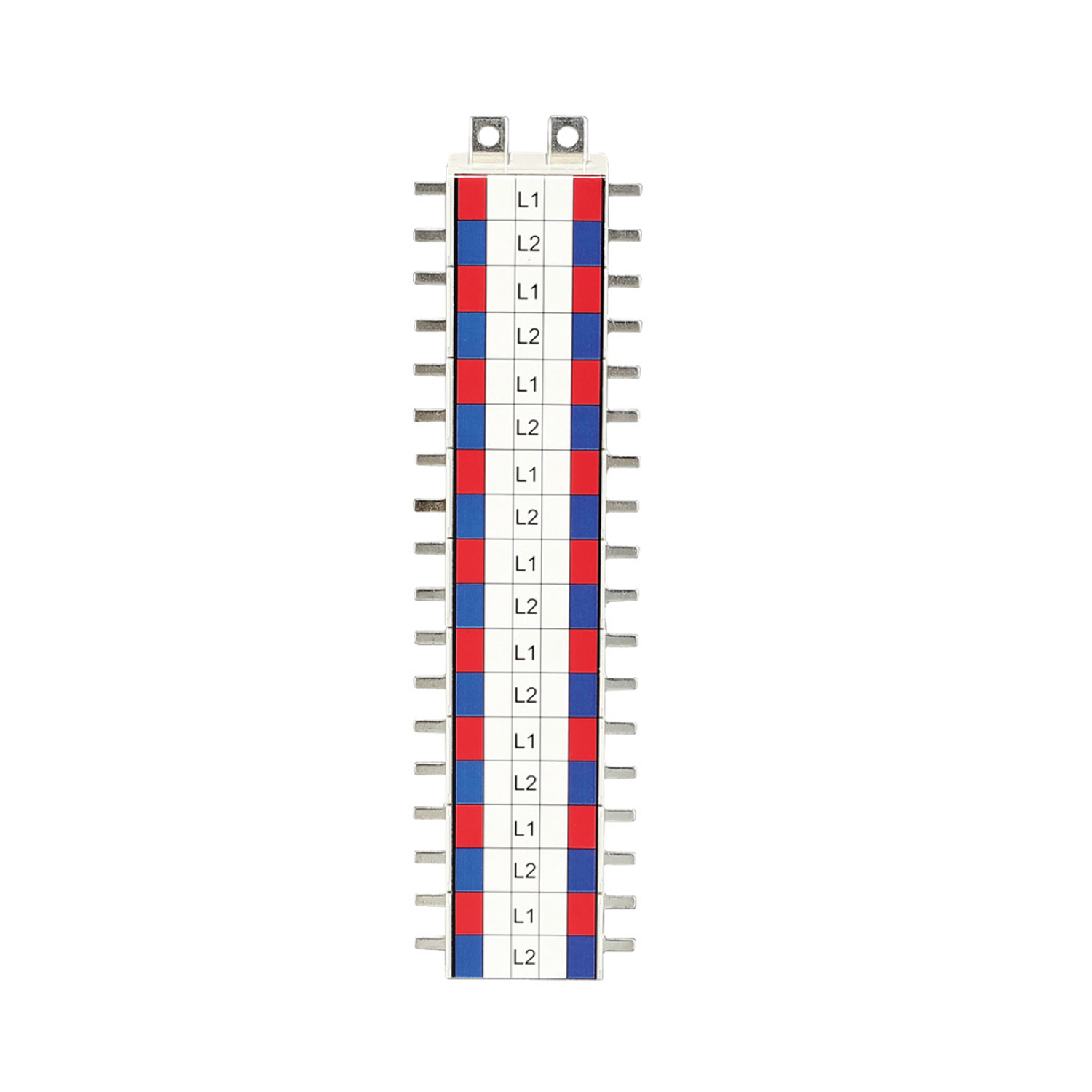

BP2

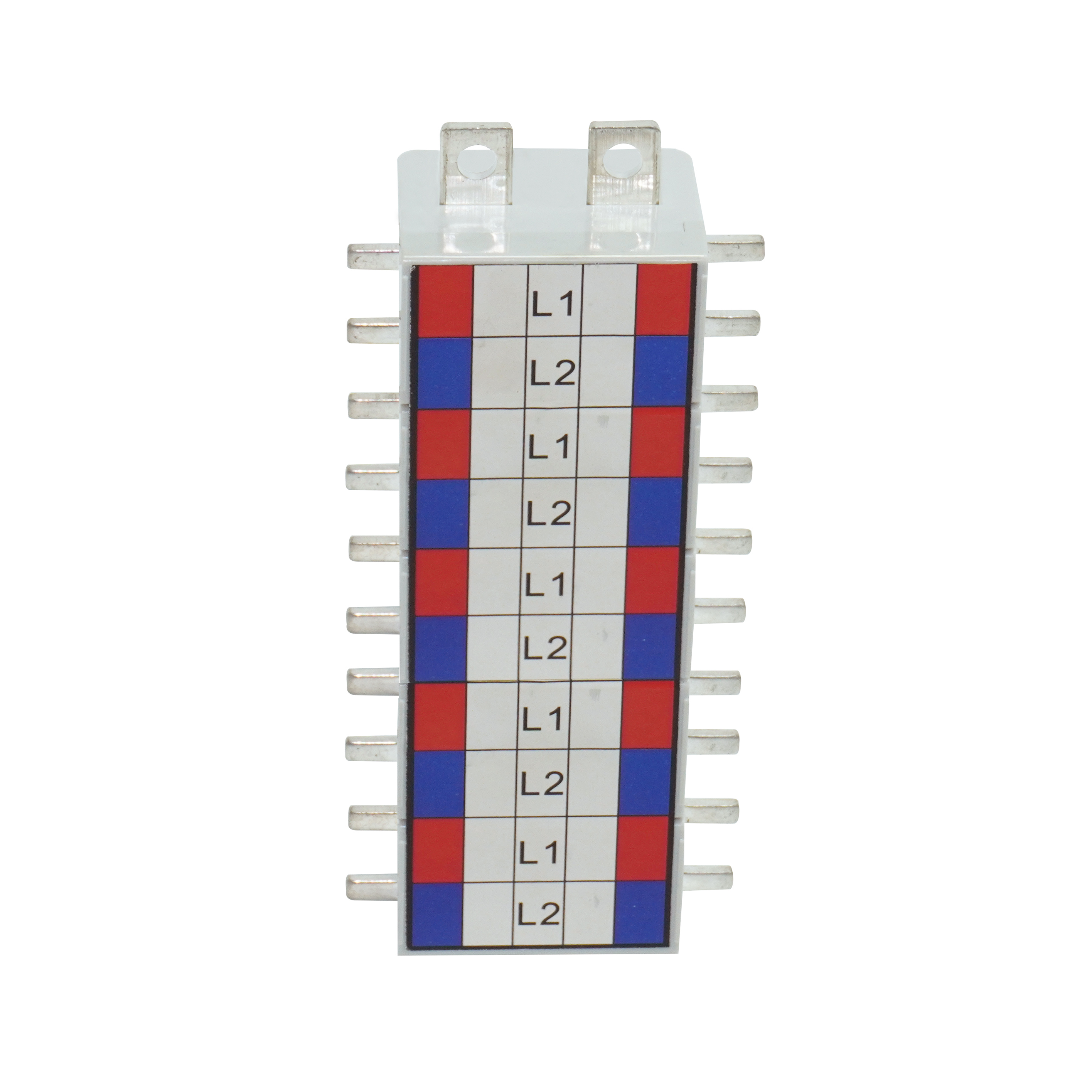

BP2

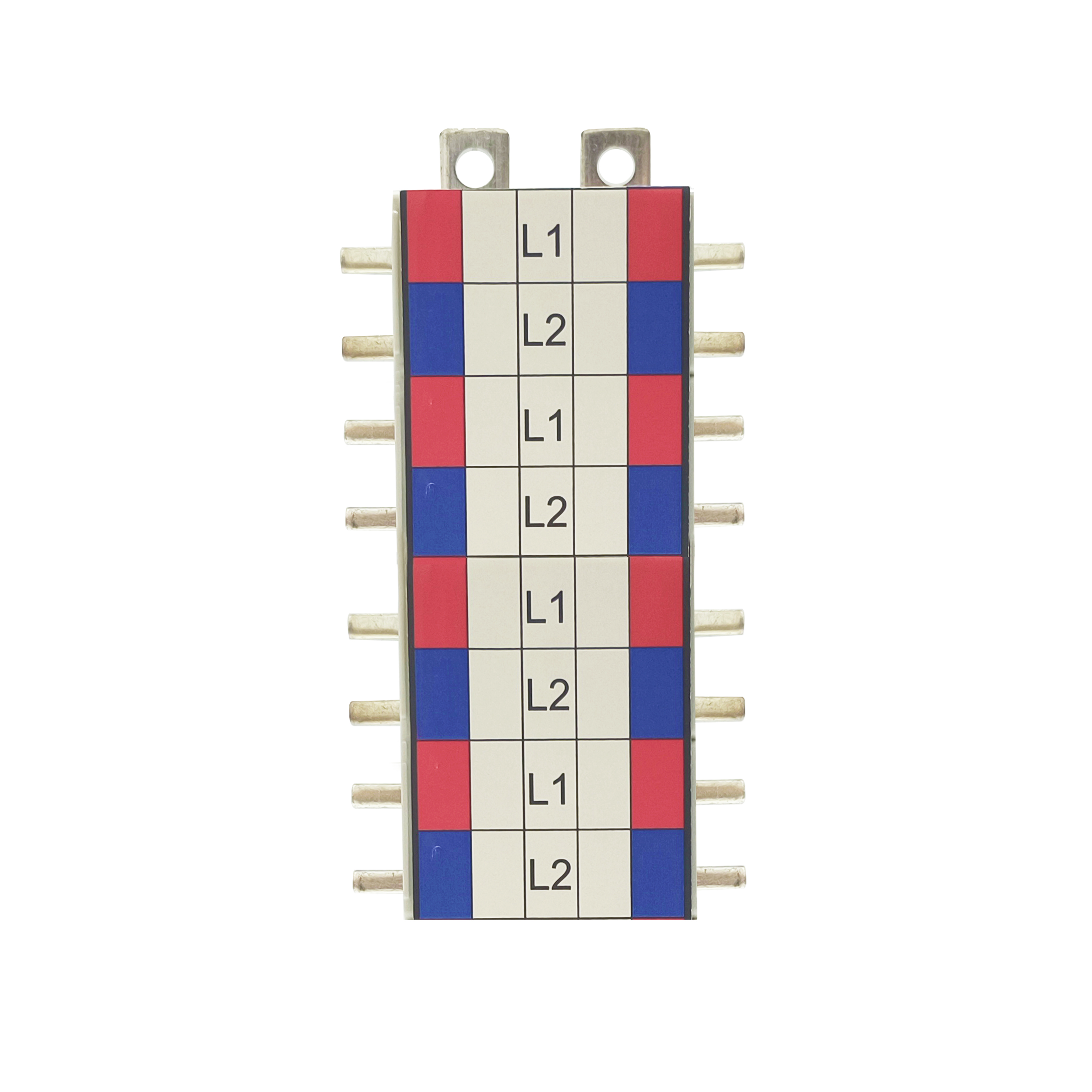

BP2

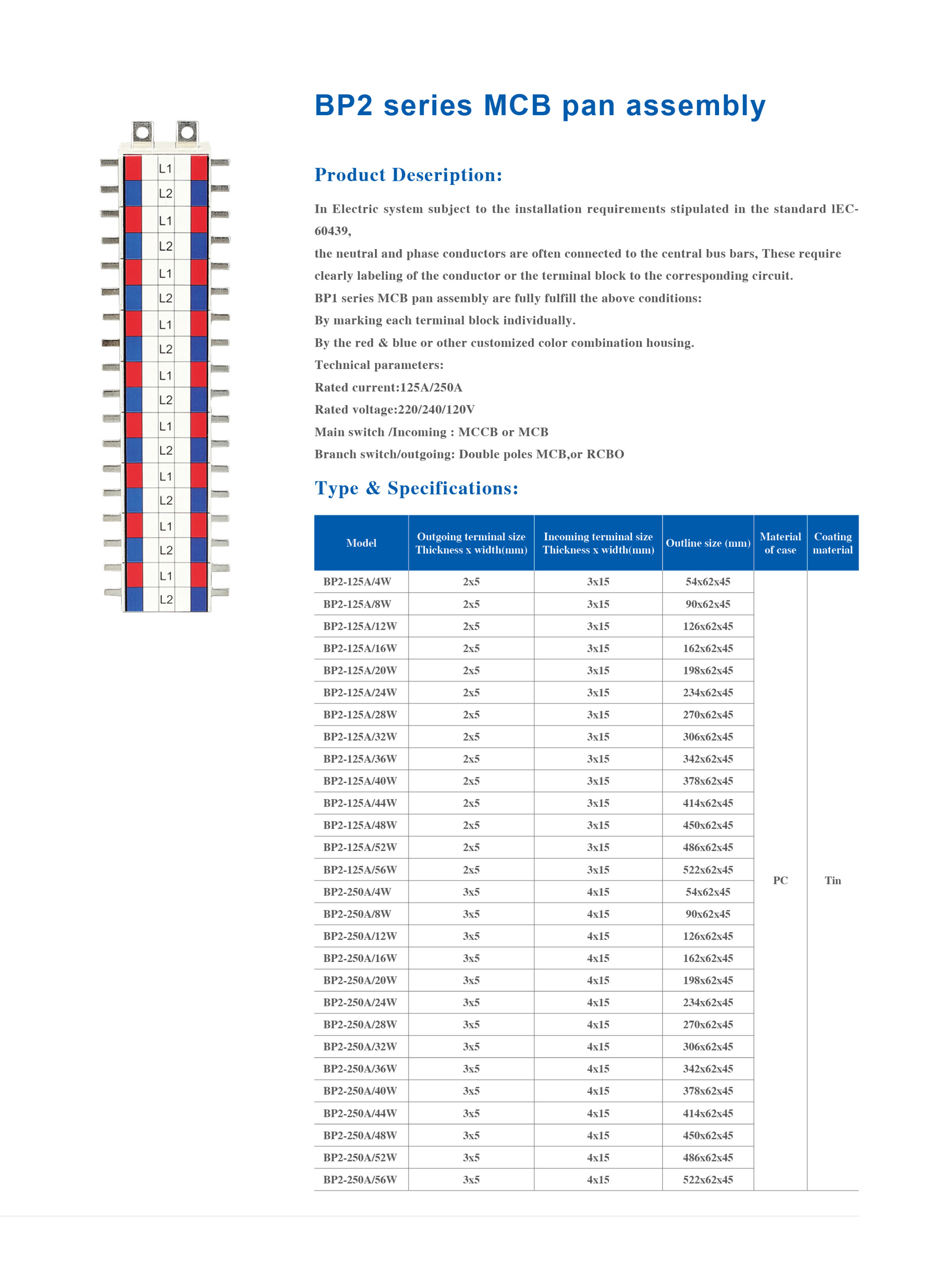

BP2_catalog
